THEMA: Selection of input control in 5.03 - BRAVO, Well done :)

Selection of input control i 5.03 - BRAVO, Well done :) 30 Jun 2020 13:29 #1

  • ClausT
  • ClausTs Avatar Autor
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Beiträge: 50
  • Karma: 1
  • Dank erhalten: 30
Well done on the "Selection of input control", the possibility to select from not only sticks and switches, but also functions etc. BRAVO, well done Jeti Team B)



I will now retire the LUA script I had as a workaround for function curve on input to Butterfly.
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Selection of input control i 5.03 - BRAVO, Well done :) 30 Jun 2020 16:14 #2

  • VOBO
  • VOBOs Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 419
  • Karma: -2
  • Dank erhalten: 65
It would be nice to put your solution here.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Selection of input control in 5.03 - BRAVO, Well done :) 30 Jun 2020 16:54 #3

  • ClausT
  • ClausTs Avatar Autor
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Beiträge: 50
  • Karma: 1
  • Dank erhalten: 30

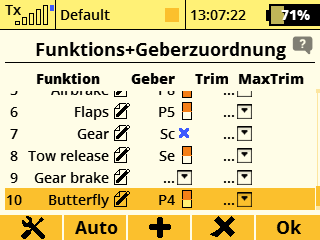

1. Define a new function e.g. "Butterfly" and assign the stick you will control it with e.g. P4.

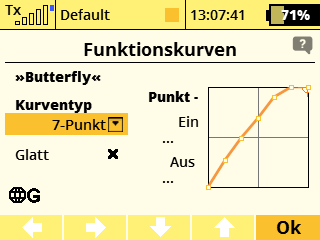

2. Now you can apply a function curve to this function, in this example I have no movement at top of stick = no butterfly applied even if stick isnt all the way forward.

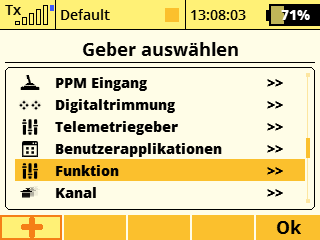

3. Set up Butterfly in normal menu, when selecting Control press + and now you get the new list of available inputs






WIth this update the "Functions" really are at the top level of control, fine tuning via Function curves either global or flight phase specific.
For me it has meant that I could drop several free mixers and a LUA script, making for a simpler setup of otherwise complex models.
Folgende Benutzer bedankten sich: VOBO
