Hello,

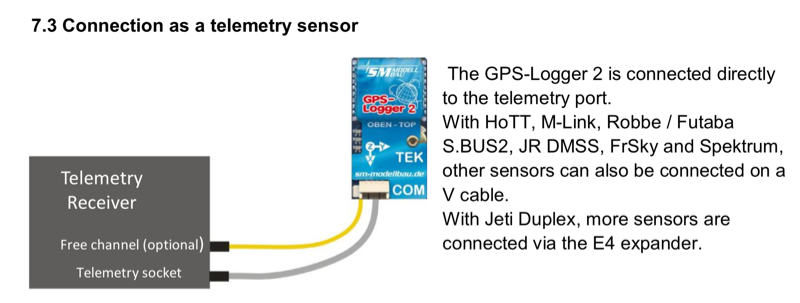

I would like to understand what's the function of the single orange cable from GpsLogger to RX.
Just to avoid to use 1 more free channel in Rx.
Thanks for help

M I K O
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

GPS Logger 2 04 Apr 2019 21:19 #2

  • skyfreak
  • skyfreaks Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 2946
  • Dank erhalten: 1445
Optionally, the GPS-Logger can be remotely controlled with a free receiver channel depending on the selected option in "Rx control" or "Start mode". For this purpose, a second connection between the desired free receiver channel and the single plug on the telemetry cable of the GPS-Logger is necessary.
If none of these options are used, the single receiver port of the GPS-Logger can simply remain free.

so essentially it is to switch between min / live / max values or start the logging, here an example for switching values.

The option "Rx control = Min / Live / Max" is used to switch between the transmission of live, min and max values via telemetry. Thus one can also record in telemetry no maxima in the transmitter after the flight e.g. read the maximum height.
At the transmitter a 3-stage switch is programmed for this free channel, which must switch the channel between the following values:

- 100% for the minimum values (switching point <1.3 ms servo pulse width)
0% for the live values
+ 100% for the maximum values (switching point > 1.7 ms servo pulse width)

ciao, guido

(translated for convenience reasons with google translate)

miko, scarica il manuale tedesco e spingilo su google translate
il manuale inglese non è completo 100%
Fliegergruss
GUIDO



_________________________________________________________
Too many dicks on the dance floor.
Too many dicks!​


Folgende Benutzer bedankten sich: diabolotin, Miko

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von skyfreak.

GPS Logger 2 05 Apr 2019 11:36 #3

  • Miko
  • Mikos Avatar Autor
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 183
  • Dank erhalten: 9
Thanks.
I don't like this kind of non respect for Customer non german speaking........but it's a question of policy.
Thanks Guido, I have one free channel more.........
M I K O

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von Miko.

GPS Logger 2 05 Apr 2019 15:59 #4

  • skyfreak
  • skyfreaks Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 2946
  • Dank erhalten: 1445
well, I know how it is as programmer
when all works is tested 100% and ready to be released, than comes writing the manual
sth a coder really hates
and pls do not forget stefan merz is a one-man-show doing this great job after normal worktime
he really offers perfect support, I already had many times contact with him
so bare with him for the english manual not beeing perfect
in general I agrre with you ... wann sell to italian market have italian manual
but as said, he is not really aiming the global market and is just a one man show

last not least, there is the great jeti forum :silly:
so most importnat is you are served in short time and your problem fixed, right?

saluti,
guido
