THEMA: MUI 30 with 2 battery

MUI 30 with 2 battery 08 Feb 2018 21:00 #1

  • NICATO
  • NICATOs Avatar Autor
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 5
  • Dank erhalten: 0
Hi Guys, I'm new owner jeti.
I wanted to ask a question:

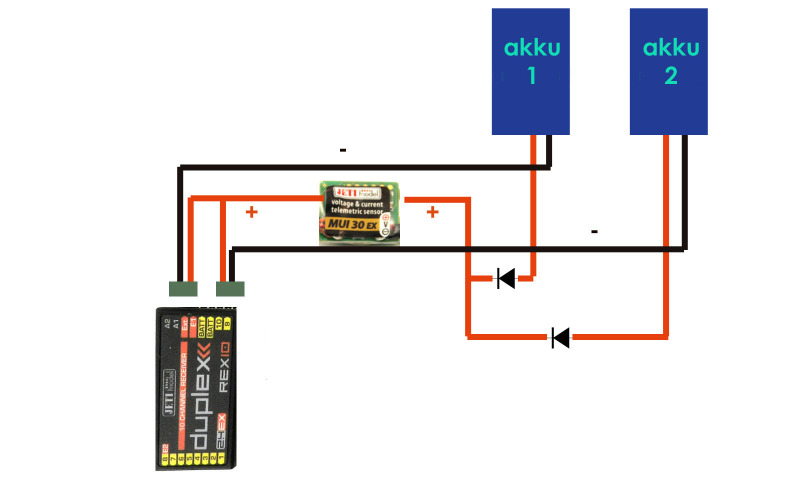

is it possible to use a mui 30 sensor connected as in my attached drawing?

I would like to use 2 batteries to REX reciver, but I would also like to measure the A and the capacity.
I have to take 2 mui 30 or just 1 as my example?

we accept suggestions

thank you all

Nik
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

MUI 30 with 2 battery 09 Feb 2018 11:44 #2

  • FuniCapi
  • FuniCapis Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Beiträge: 317
  • Karma: 1
  • Dank erhalten: 106
This wiring will work.
But you dont know the status of each battery. A voltage measurement is also done by the receiver.

Lukas

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von FuniCapi.

MUI 30 with 2 battery 09 Feb 2018 12:24 #3

  • sunbeam
  • sunbeams Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 1480
  • Karma: 3
  • Dank erhalten: 327
Hi Nick,

both Akkus go to the reciever? As far as I know all "+" and "-" are connected among each other in the reciever, so two Akkus are connected parallel. I would say that in such a parallel circuit you can measure the capacity as in your drawing.

Kind regards, Kai

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

MUI 30 with 2 battery 09 Feb 2018 18:49 #4

  • NICATO
  • NICATOs Avatar Autor
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 5
  • Dank erhalten: 0
thanks Lukas and Kai.
I want to know only how much has consumed in capacity (total) and how many Ampere is consuming in real time.
Of course, with my wiring, I don't have the capacity of single battery, but the total (1 akku+2 akku)
I knew that the + and - are connected in parallel in Rex.

best regards

Nik
