Hello,
I'm taking a different approach to solve my specific needs. but hope it helps.

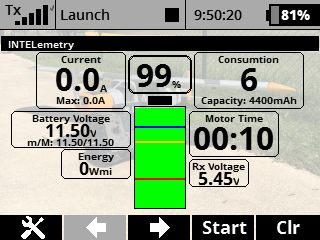

My approach. I'm creating an integrated screen that includes all the MUI or MEZON sensors, and it adapts to the different scenarios:
Sensors on screen:
Instant and Max Battery Current
Battery Consumption
Instant, Max and Min Battery Voltage
Instant Energy (only available when using MUI, and only available on MUI updated to 2.03)
Motor Timer
Instant Receiver Voltage
Graphic representation on screen:
Battery, with four levels of warning, customizable.
Battery Consumption percentage.
Sensor detection:
even if more sensors are connected, the INTelemetry application only allows to select any MUI or MEZON sensors
Embedded warnings:

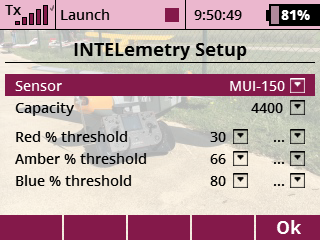

For the battery consumption, three warning levels are customizable, both in terms of level (as percentage of available capacity) and as a sound message.
For my configuration, I use:
Green: above 80%
Blue: between 80% and 67%
Amber: between 66% and 31%
Red: 30% and below.

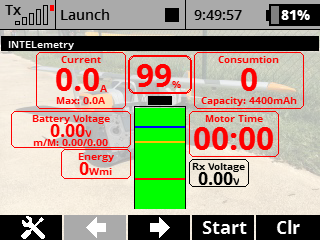

If the sensor gets unavailable (for example, if Q is weak) the sensor text changes color, taking into consideration how long the signal is lost. The time is not customizable.
Blue: 500 millisecons without valid sensor
Amber: 2 seconds without a valid sensor
Red: 5 seconds without a valid sensor

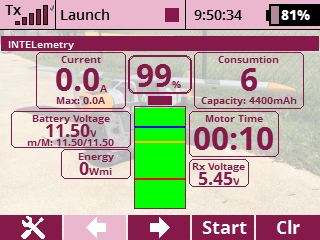

The INTELemetry uses the system color profile where possible.
TODOS:
Incorporate MEZON-specific readings, such as PWM and motor speed.
Evaluate/incorporate the option to include other graphic sensors, such as horizon, bearing, airspeed for one plane where I have a fuller suite: GPS, RexAssist, Speed Sensor, Vario and Mezon.
Evaluate/incorporate the option to use a SBEC with telemetry when using Opto controllers, and to have that information also on screen.
Evaluate/incorporate the option for telemetry, including second receiver, backup receiver and/or central box.
Use warning colors that make sense depending on the color profile (example: in Warm Red the foreground color is red, as my alert color... not useful).
Have some sensors to be persistent and reset only when a specific switch is used and not when I turn off the receiver.
Include translations to German, French, Czech, French and Portuguese. At the moment, the application is available in English, Spanish and Italian, with other languages defaulting to English.
I've been able to keep the code as efficient as possible, and at the moment it looks that it should work on a 16 (not confirmed).
