GPS-Sensor 27 Dez 2020 20:08 #43

  • TeroS
  • TeroSs Avatar Autor
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • RC-Thoughts
  • Beiträge: 516
  • Dank erhalten: 363
Just noticed this: "Data Level : TTL or RS-232,Default TTL level" and also "To make it be RS232 output, you need to use one TTL to RS232 converter cable"

My guess is that U-Center needs to be used, I'll see when the modules get here. just ordered a few.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

GPS-Sensor 28 Dez 2020 11:41 #44

  • kmpec
  • kmpecs Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Beiträge: 125
  • Dank erhalten: 19
Hey Tero!
Thanks for getting in touch with this...

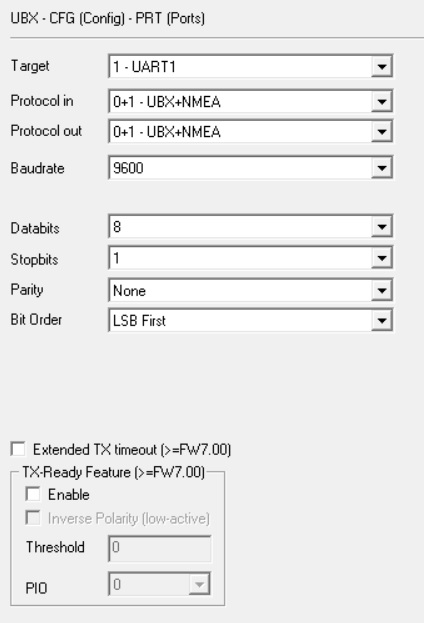

I tried several configurations of the ports in UCenter.

This is what it looks like:


I guess the serial communicatin should be ok with 9600 8N1?

So its all about the protocoll IN and OUT
This are the options:



Any Ideas?
More to config than just the ports?

Greetings
David
Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

GPS-Sensor 28 Dez 2020 14:01 #45

  • TeroS
  • TeroSs Avatar Autor
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • RC-Thoughts
  • Beiträge: 516
  • Dank erhalten: 363
Wild guess is that those could be correct. When GPS 2.0 is started it will sens some commands to NEO with UBX and then use NMEA to read GPS-values. Since I cannot test or verify the BN-220 before they arrive I really cannot say, sorry. My order is shipped but it might take some time.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

GPS-Sensor 28 Dez 2020 16:25 #46

  • paul
  • pauls Avatar
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Beiträge: 13
  • Dank erhalten: 6
Hello Kmpec
I just sent a PM
Paul

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Letzte Änderung: von paul.

GPS-Sensor 28 Dez 2020 18:10 #47

  • TeroS
  • TeroSs Avatar Autor
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • RC-Thoughts
  • Beiträge: 516
  • Dank erhalten: 363
Hey kmpec, please try to turn TX/RX around between arduino and BN-220.

This would be the "normal" way to connect;
- GPS TX -> Ardu RX
- GPS RX -> Ardu TX

After reading the interwebs there seems to be quite a lot of BN-220's tha need to be connected like this:
- GPS TX -> Ardu TX
- GPS RX -> Ardu RX

Does not cost anything to test so please do that :)
