THEMA:

OK A1 and A2 can be even low as in some case of my log, but Q ( QUALITY?) is an indication of the quality of the
receiver signal. Is it so?

I would like any case to understand why sometimes A1 and A2 are at level 3 for example......

Hallo,

Q = quality in % of the data packages

Look here in menue "Dataanalyzer"; here you can select "Q" and see check the quality.

Why somtimes antenna 3 ?

Please show us aircraft and installation of RX etc.


Thank´s

PW

A Q data rate of 100 percent with three points at 96 percent shows a top antenna position.
Lowest antenna level of 3 is alright for each modell, for a glider is it top.

Check the RX Voltage at the begin and end of your log.
Maybe you start logging before the rx is on air.

With Greets
Harald

RX voltage always ok. Only when I move "landing" stick and flaps,brakes and elevator are in movement the voltage drop to 4,5V instead of 5,09. Otherwise a straight line on the log.
I attached log where you can see all parameters recorded.
Low level are not at start and landing moment, are in flight and in my opinion is a normal flight, not very far from launch and not more than 100 meters quote.

Hallo Miko,

if during landing position your RX voltage drops from 5,09 V up to 4,5 V, then somthing with RX power supply is not perfect.

What kind of RX batterie or do you use a BEC system ?


Regards

PW

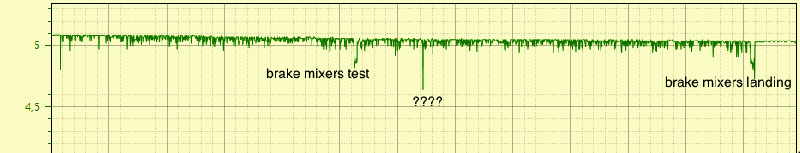

see log for RX V
